Taking a Closer Look at Elisity

Networking, Security

PETER WELCHER | Solutions Architect

This blog provides additional context to “Elisity Zero Trust (ZTNA) Trends High in Security,” which describes its position in the Zero Trust / ZT / ZTNA market, doing ID / device type / context-based authentication and internal access controls.

One key differentiator for Elisity is Time To Value: no impact deployment, initial results within about two weeks

This blog provides more details about Elisity, including screen captures that provide more of a feel for the product’s administrator-facing side.

I will start with the policy and enforcement side then briefly touch upon some other aspects of the product.

What Information Is Used by Elisity?

Elisity discovers information about devices attached to the (campus) network. Here is a partial list of information collected:

  • Device ID (MAC, IP, flow-based discovery data)
  • Device Tracking (MAC to IP mapping, switch port location, DHCP/ARP snooping by switch port, Cisco CDT)
  • Traffic flow data (device interface locations, source/destination IPs, source/destination ports for TCP/UDP)
  • Switch Configuration (checking switch configuration, pushing policy configuration to switch)
  • Context information gleaned from various third party sources such as AD, CMDB, Claroty, Medigate, Tenable etc.

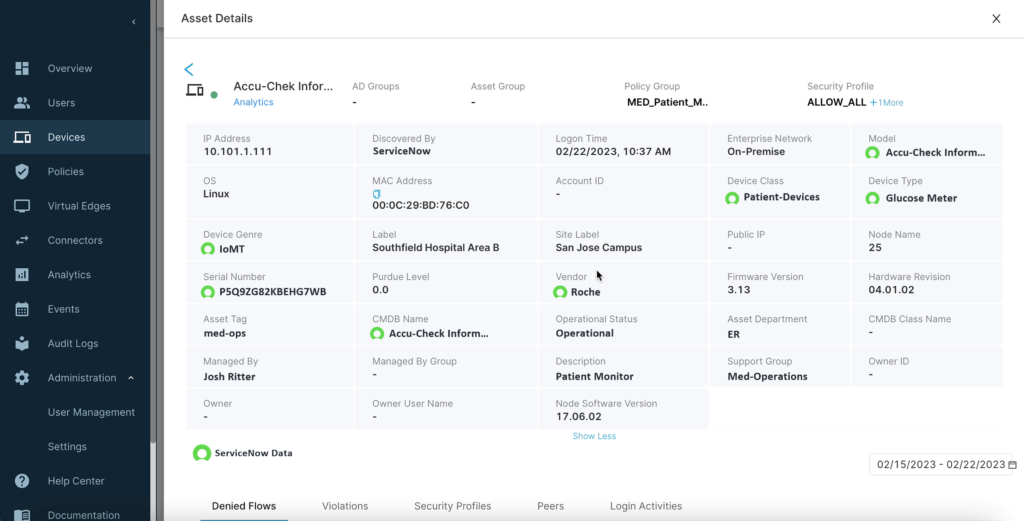

The operator can see essential information that Elisity has learned via the GUI:

Building Your Policy

Policy creation starts with identifying the “business assets you want to protect,” and then defining groups of users, devices, and custom-defined applications, and creating policy rules. Policy rules are similar to access list rules, but leverage the asset attributes rather than IP addresses etc. In other words, they are identity and attribute-based. And they can be continually verified.

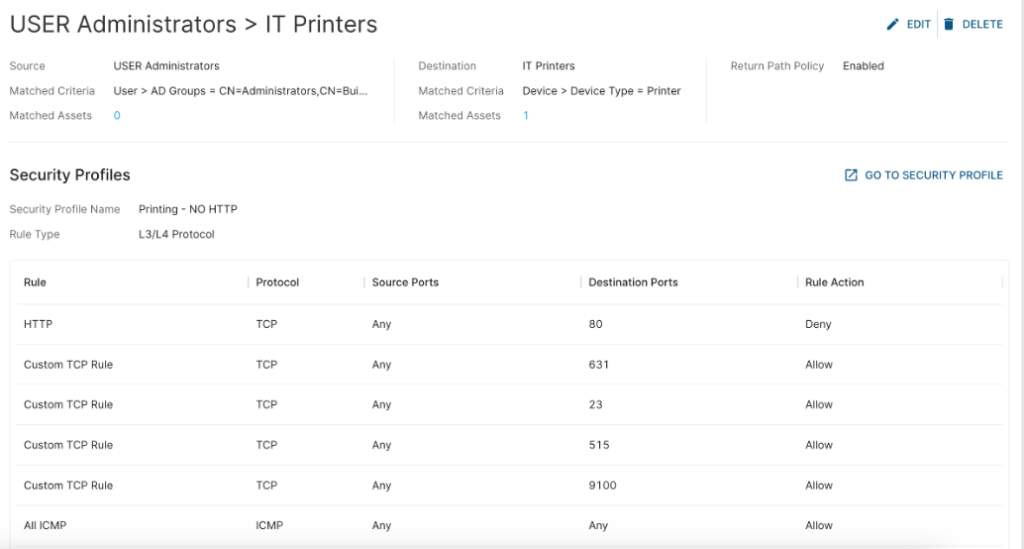

Here is an example of a policy controlling traffic from Admin users to printers in the group IT Printers.

Policy groups can lump together users, device types, and custom-defined apps that need to be treated similarly – to reduce rule-building complexity and enhance readability. They are specified by match criteria. You can then use them in Boolean expressions, e.g., “User in AD group Physician” AND “Device model is Heart Monitor.”

For example, lumping together various types of medical imaging devices might be a good idea for “sanity retention.” Here is sample info about a group named “MED Imaging Devices,” tab “Match Criteria.”

Clicking on the Assets tab shows the devices in the group.

Clicking on the Attached Policies tab brings up all the associated security policies:

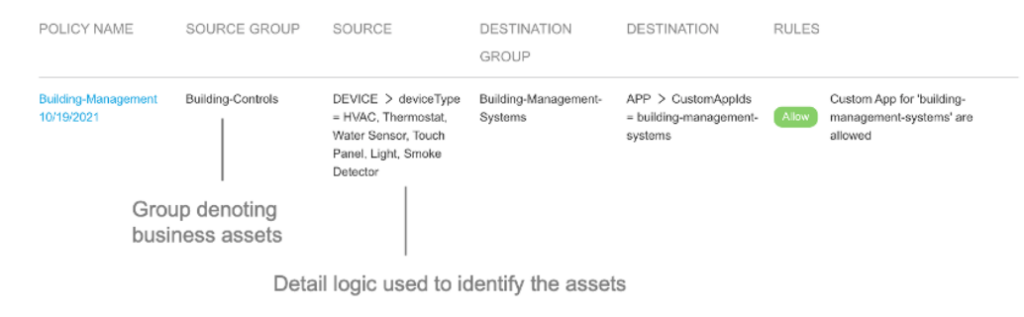

Individual policy rules can be examined in more detail:

Note the hierarchy inherent in attributes: DEVICE versus USER, greater-than sign (“>”), and attribute. The attributes can be comma separated (for logical “OR”).

Here is Elisity’s example showing a sample policy used for credit card data:

There are pre-built groups, including “Unclassified” (anything else), and “InternetPG” (external subnets, modifiable).

A security profile lists L3/L4 protocols allowed or denied in a policy.

Policy Visualization

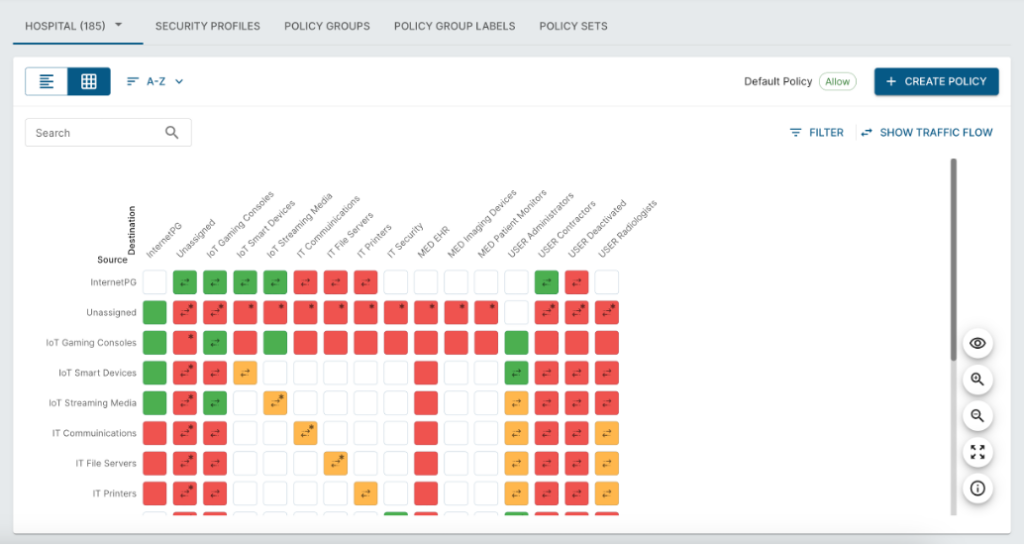

Other key aspects of security are managing what you have put in place and keeping it all straight. To keep all this organized and readily accessible, Elisity provides a policy visualization view.

There is a legend at the bottom of the figure (not shown).

My immediate reaction on seeing this matrix was “seems similar to Cisco DNAC”. (Hey, repeated exposure means I have DNAC on the brain!) Well, the Matrix IS a natural (obvious?) and concise way to represent interactions between the pairs of items in a list of things.

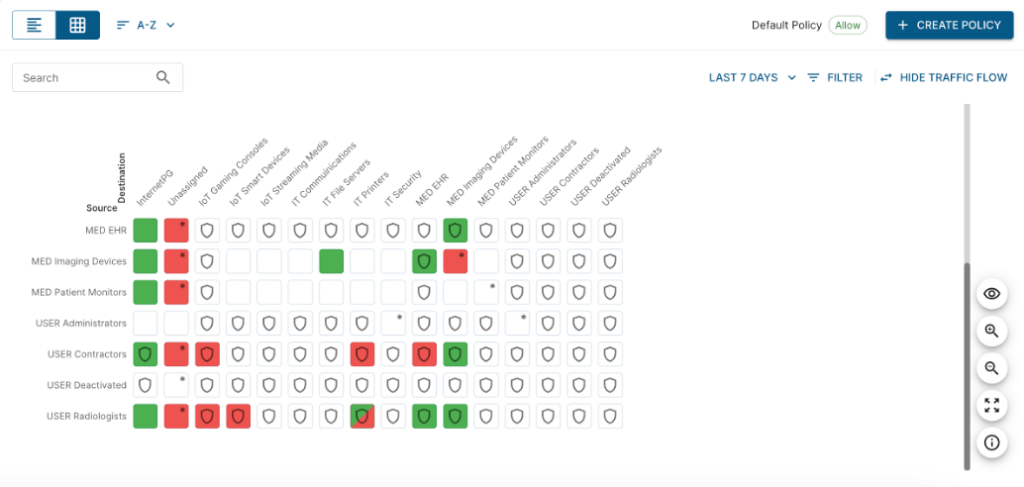

A similar view lets you examine observed traffic flows:

(The legend and color-coding differ from the previous diagram.)

You can also list policies as shown below:

This should provide a rough visual of what the day-to-day use of Elisity might be like.

Equally important, behind the scenes Elisity ties into a growing number of other Asset and ID tools via “Connectors.” Here’s the list as of the time of writing:

  • Built-in asset and ID engine
  • Active Directory
  • Azure AD is on the roadmap for later in the year
  • Claroty
  • Medigate
  • ServiceNow CMDB (as SSOT and for policy match criteria)
  • Okta
  • PingIdentity
  • Dragos
  • Tenable
  • SIEM: Splunk
  • Radius
  • Kerberos login


  • SSO tools: Azure SSO, Okta, Ping Identity


Elisity provides a large number of web reports on devices, flows, blocked traffic, etc. Find more information on this topic here: Visibility and Traffic Analytics.


Elisity is focused on Time To Value. Their sales process uses a quick onsite Proof of Concept. Elisity can purportedly show proof of value within a couple of weeks.

LATE BREAKING NOTE: Just in time for CiscoLive 2023, Elisity announced version 15.0 with major enhancements to their policy creation and management functionality.
